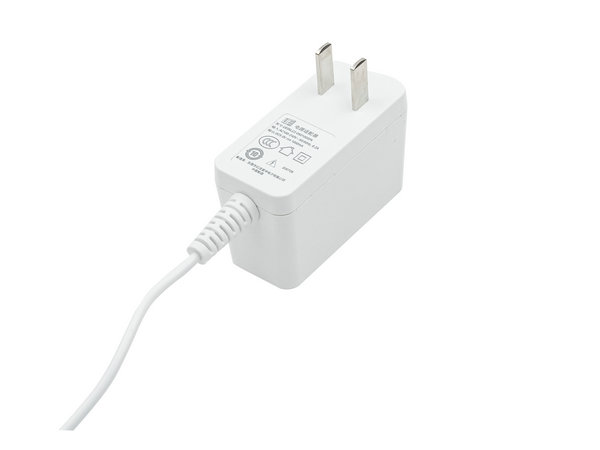

UE05LC3-SPA
- Model：UE05LC3-SPA
- Power：5W
- Output voltage：5.0-6.0V
- Output current：0.01-1.00A
- Download：
Click there to view
details.
| Wechat: |
|
Details
Recommend
| Product Features |
| Medical & I.T.E. safety approvals |
| 2 MOPP input to output isolation |
| Engergy Efficiency level V |
| Leakage current≤100μA |
| ≤ 0.3W standby power |
| 5V to 6V outputs,up to 5W |
| Up to 5000m operating altitude |
Input Voltage Range:90-264VAC Frequency Range:47-63Hz Input Current:0.2A,at 100VAC Inrush Current:50A max at 240VAC cold start Touch Leakage Current(max):≤ 100μA at 264VAC |
| Environmental General Operationg Temperature 0?45 ℃ Dimensions 61.5（L）x39.5（W）x28.2（H）mm Storage Temperature -20?60℃ Weight 60g Operating Humidity 10?90％RH, non-condensing MTBF > 100,000hrs MIL-HDBK-217， at 25℃ Storage Humidity 5?90％RH Operating Altitude 5000m |
| Safety Approvals Safety Agency/Mark Medical ITE CCC - GB4943.1 |
| Models & Ratings | ||||||||
| Model Number | Voltage | Current | Rated Power | Ripple & Noise | Voltage Tolerance | Line & Load | Efficiency | Start up Delay |
| （V） | （A） | （max） | Regulation | |||||
| UE05LC3-XXXYYYSPA | 5.0 | 0.01-1.00 | 5.00W | 200mVpk-pk | ±8％ | Line：±5％ | 68.17% | ≤3S |
| 6.0 | 0.01-0.80 | 4.80W | 200mVpk-pk | ±8％ | Load：±5％ | 72.02% | ≤3S |
