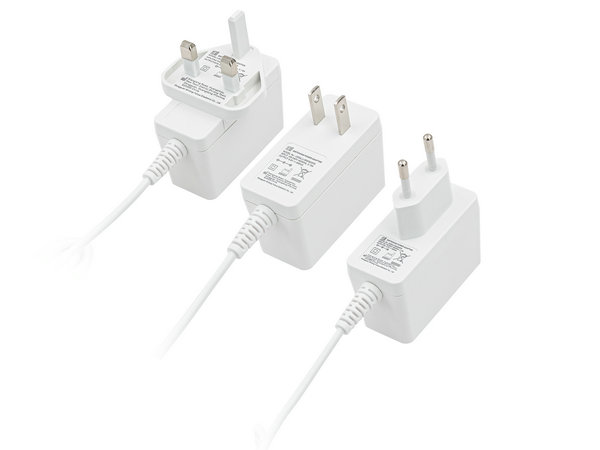

UE05LZ2-SPA
- Model：UE05LZ2-SPA
- Power：5W
- Output voltage：5.00-6.00V
- Output current：0.01-1.00A
- Download：
Click there to view
details.
| Wechat: |
|
Details
Recommend
| Product Features |
| Medical & I.T.E. safety approvals |
| 2 MOPP input to output isolation |
| Engergy Efficiency level V |
| Leakage current≤100μA |
| ≤ 0.3W standby power |
| 5V to 6V outputs,up to 5W |
| Up to 5000m operating altitude |
| Environmental General Operationg Temperature 0?45 ℃ Dimensions 62.0（L）x40.2（W）x29.0（H）mm Storage Temperature -20?60℃ Weight 75g Operating Humidity 10?90％RH, non-condensing MTBF > 100,000hrs MIL-HDBK-217， at 25℃ Storage Humidity 5?90％RH Operating Altitude 5000m |
| Safety Approvals Safety Agency/Mark Medical ITE CB IEC60601-1 - |
| TüV SUD/Mark EN60601-1 - UL ANSI/AAMI ES 60601‐1(Meet) - |
| Models & Ratings | ||||||||
| Model Number | Voltage （V） | Current （A） | Rated Power | Ripple & Noise （max） | Voltage Tolerance | Line & Load Regulation | Efficiency | Start up Delay |
| UE05LZ2-XXXYYYSPA | 5.0 | 0.01-1.00 | 5.00W | 200mVpk-pk | ±8％ | Line：±5％ | 68.17% | ≤3S |
| 6.0 | 0.01-0.80 | 4.80W | 200mVpk-pk | ±8％ | Load：±5％ | 72.02% | ≤3S | |
