UES60D1-SPC（PD快充）
- Model：UES60D1-SPC
- Power：60W
- Output voltage：5.00-20.00V
- Output current：0.01-3.00A
- Download：
Click there to view
details.
| Wechat: |
|
Product Features
Medical & ITE safety approvals |
2 MOPP input to output isolation DOE Efficiercy Level VI & CoC V5 Tier2(2016) |
Low Leakage current≤100μA ≤0.15W standby power Up to 5000m operating altitude |
Support online programming Meet USB PD3.0 & QC4.0+fast charge agreement |
Input
Input Voltage:90-264VAC
Frequency Range:47-63Hz
Input Current:1.3A,at 90VAC
Touch Leakage Current(max):≤ 100μA at 264VAC
Environmental
Operationg Temperature: 0℃ to 40℃
Storage Temperature:-40℃ to 80℃
Operating Humidity:10 to 90% RH,non-condensing
Storage Humidity::5 to 90% RH
Operating Altitude:5,000 M
General
Dimensions:88.0(L)×51.5(W)×28.0(H)mm
Weight:175g
MTBF:＞100000hrs MIL-HKBK-217 at 25℃
Isolation:5,656VAC Input to Output
Safety Approvals | ||||||||||||
Safety Agency/Mark | Medical(Meet) | ITE(Meet) | ||||||||||
CB | - | IEC62368-1 | ||||||||||
TUV-NRTL | - | UL62368-1 | ||||||||||
CE | - | EN62368.1 | ||||||||||
Models & Ratings
Model Number | Voltage | Current | Rated Power | Ripple & Noise | Voltage Tolerance | Line & Load | Efficiency (Average) | Start Up Delay |
（V） | （A） | （max） | Regulation | |||||
UES60D1-SPC | 5 | 0.0-3.0 | 15W | 150mVpk-pk | ±5% | Line: ±1% | 82.00% | ≤3s |
9 | 0.0-3.0 | 27W | 150mVpk-pk | ±5% | 86.80% | ≤3s | ||
12 | 0.0-3.0 | 36W | 150mVpk-pk | ±5% | 87.50% | ≤3s | ||
15 | 0.0-3.0 | 45W | 150mVpk-pk | ±5% | 88.00% | ≤3s | ||
20 | 0.0-3.0 | 60W | 150mVpk-pk | ±5% | 89.00% | ≤3s |

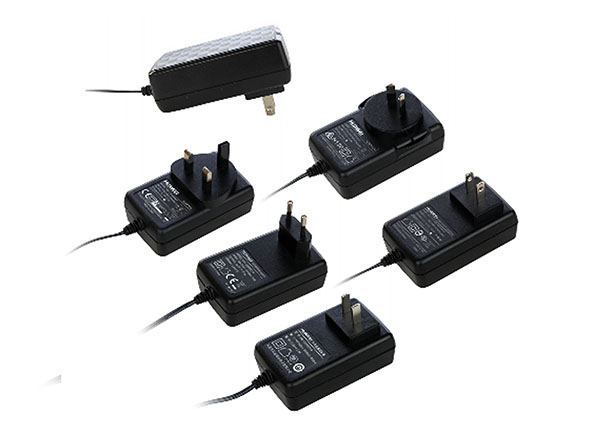

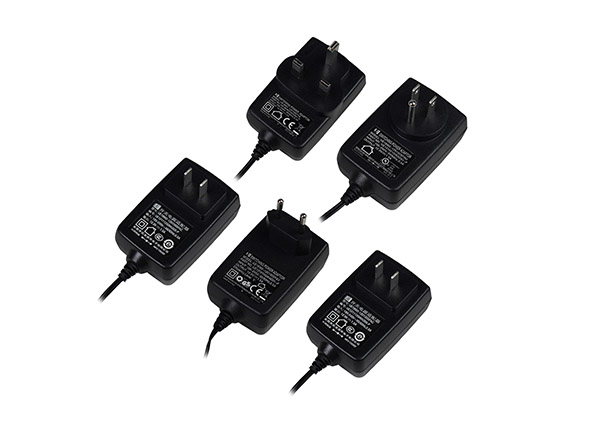

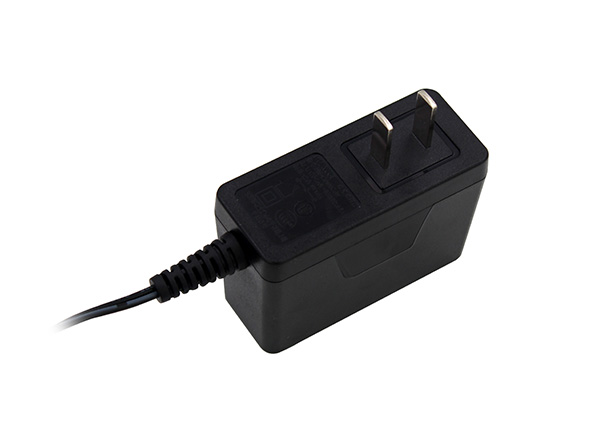

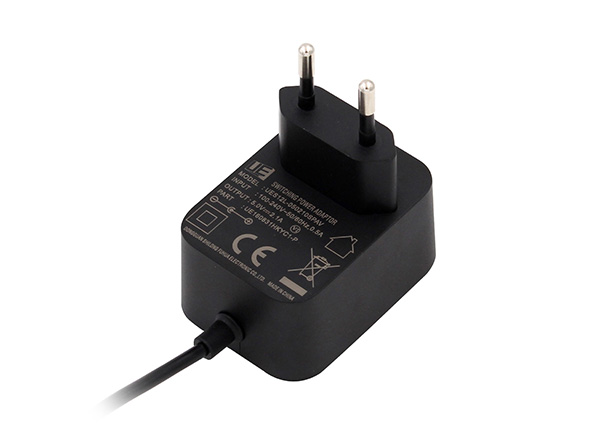

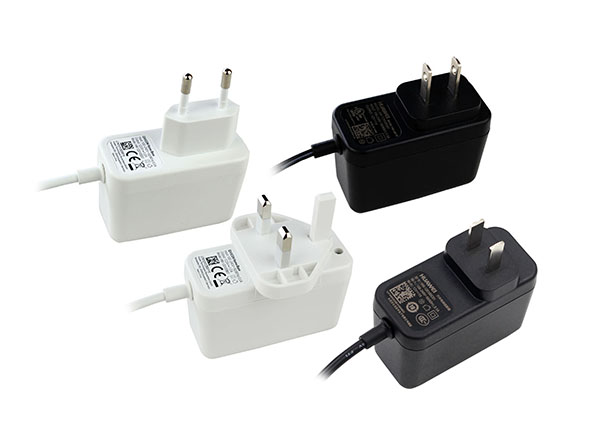

Products show
