點擊查看詳細資料| 產品特性 | ||
| 醫療和ITE安全認證 | ||
| 2 MOPP 隔離保護 | ||
| 漏電流 ≤ 10μA | ||
| DOE能效六級 | ||
| 待機功耗≤0.075W | ||
| 4V至24V輸出, 最高12W | ||
| 工作海撥高度5000米 | ||

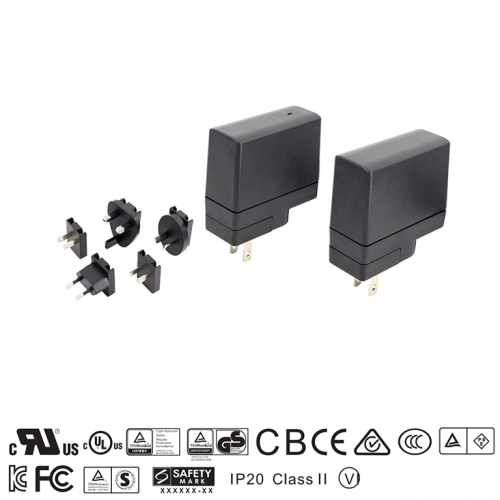

| 配多種可換式AC插腳 | ||
| 電氣規格 | ||
| 輸入電壓 | 90~264VAC | |
| 頻率范圍 | 47-63HZ | |
| 輸入電流 | 0.5A，在90VAC 輸入條件下 | |
| 接觸電流 | ≤100μA在264VAC輸入條件下 | |
| 環境參數 | ||
| 工作溫度 | -5~45℃ | |
| 儲存溫度 | - 25~75℃ | |
| 工作濕度 | 10~90%RH, 無冷凝 | |
| 儲存濕度 | 5~90% RH | |
| 安規認證 | ||
| 安全機構/標志 | 醫療 | 通信 |
| CB | IEC60601-1 | IEC60950-1 IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 | UL60950-1 UL62368-1 |
| CAN/CSA C22.2 NO.60601-1 | CAN/CSA C22.2 NO.60950-1 | |
| TUV Rheinland/Mark | EN60601-1 | EN62368-1 |
| TUV Rheinland/GS | - | EN62368-1 |
| RCM | - | AS/NZS 60950.1 |
| CE | - | EN62368-1 |
| CCC | - | GB4943.1 |
| PSE | - | J60950 J62368 |
| KC | - | K60950-1 |
| FCC | - | FCC PART 15 |
| 一般 | ||
| 外形尺寸 | 76(長)*30.3(寬)*48.2(高)mm | |
| 重量 | 120g | |
| 平均故障間隔時間 | > 100,000小時MIL-HDBK-217，在25℃環境溫度下。 | |
| 輸出數據 | ||||||||
型號 | 電壓 | 電流 | 功率 （瓦） | 紋波 | 電壓公差 | 線性與負數調整率 | 平均效率 | 啟動延遲時間 |
UES12LCP-XXXYYYSPA UES12LCP-XXXYYYSPA-OP UES12LCP-XXXYYYSPC UES12LCP-XXXYYYSPC-OP | 4.0-5.0 | 0.01-2.00 | 10.00W | 150 | ±7% | 線性調整率:±1% 負載調整率:±5% | 79.01% | ≤3s |
5.1-6.0 | 0.01-2.00 | 12.00W | 150 | ±7% | 80.19% | ≤3s | ||
6.1-7.0 | 0.01-1.71 | 11.97W | 150 | ±7% | 83.30% | ≤3s | ||
7.1-8.0 | 0.01-1.50 | 12.00W | 150 | ±7% | 83.30% | ≤3s | ||
8.1-9.0 | 0.01-1.33 | 11.97W | 150 | ±5% | 83.30% | ≤3s | ||
9.1-10.0 | 0.01-1.20 | 12.00W | 150 | ±5% | 83.30% | ≤3s | ||
10.1-11.0 | 0.01-1.09 | 11.99W | 150 | ±5% | 83.30% | ≤3s | ||
11.1-12.0 | 0.01-1.00 | 12.00W | 150 | ±5% | 83.30% | ≤3s | ||
12.1-13.0 | 0.01-0.94 | 12.22W | 200 | ±5% | 83.30% | ≤3s | ||
13.1-14.0 | 0.01-0.86 | 12.04W | 200 | ±5% | 83.30% | ≤3s | ||
14.1-15.0 | 0.01-0.80 | 12.00W | 200 | ±5% | 83.30% | ≤3s | ||
15.1-16.0 | 0.01-0.75 | 12.00W | 200 | ±5% | 83.30% | ≤3s | ||
16.1-17.0 | 0.01-0.71 | 12.07W | 200 | ±5% | 83.30% | ≤3s | ||
17.1-18.0 | 0.01-0.67 | 12.06W | 200 | ±5% | 83.30% | ≤3s | ||
18.1-19.0 | 0.01-0.63 | 11.97W | 200 | ±5% | 83.30% | ≤3s | ||
19.1-20.0 | 0.01-0.60 | 12.00W | 200 | ±5% | 83.30% | ≤3s | ||
20.1-21.0 | 0.01-0.57 | 11.97W | 200 | ±5% | 83.30% | ≤3s | ||
21.1-22.0 | 0.01-0.55 | 12.10W | 200 | ±5% | 83.30% | ≤3s | ||
22.1-23.0 | 0.01-0.52 | 11.96W | 200 | ±5% | 83.30% | ≤3s | ||
23.1-24.0 | 0.01-0.50 | 12.00W | 200 | ±5% | 83.30% | ≤3s |
| 產品特性 | ||
| 醫療和ITE安全認證 | ||
| 2 MOPP 隔離保護 | ||
| 漏電流 ≤ 10μA | ||
| DOE能效六級 | ||
| 待機功耗≤0.075W | ||
| 4V至24V輸出, 最高12W | ||
| 工作海撥高度5000米 | ||
| 配多種可換式AC插腳 |
| 電氣規格 | ||
| 輸入電壓 | 90~264VAC | |
| 頻率范圍 | 47-63HZ | |
| 輸入電流 | 0.5A，在90VAC 輸入條件下 | |
| 接觸電流 | ≤100μA在264VAC輸入條件下 | |
| 環境參數 | ||
| 工作溫度 | -5~45℃ | |
| 儲存溫度 | - 25~75℃ | |
| 工作濕度 | 10~90%RH, 無冷凝 | |
| 儲存濕度 | 5~90% RH | |
| 外形尺寸 | 76(長)*30.3(寬)*48.2(高)mm | |
| 重量 | 120g | |
| 平均故障間隔時間 | > 100,000小時MIL-HDBK-217，在25℃環境溫度下。 | |
| 安規認證 | ||
| 安全機構/標志 | 醫療 | 通信 |
| CB | IEC60601-1 | IEC60950-1 IEC62368-1 |
| UL | ANSI/AAMI ES60601-1 | UL60950-1 UL62368-1 |
| CAN/CSA C22.2 NO.60601-1 | CAN/CSA C22.2 NO.60950-1 | |
| TUV Rheinland/Mark | EN60601-1 | EN62368-1 |
| TUV Rheinland/GS | - | EN62368-1 |
| RCM | - | AS/NZS 60950.1 |
| CE | - | EN62368-1 |
| CCC | - | GB4943.1 |
| PSE | - | J60950 J62368 |
| KC | - | K60950-1 |
| FCC | - | FCC PART 15 |
| 輸出數據 | ||||||||
型號 | 電壓 | 電流 | 功率 （瓦） | 紋波 | 電壓公差 | 線性與負數調整率 | 平均效率 | 啟動延遲時間 |
UES12LCP-XXXYYYSPA UES12LCP-XXXYYYSPA-OP UES12LCP-XXXYYYSPC UES12LCP-XXXYYYSPC-OP | 4.0-5.0 | 0.01-2.00 | 10.00W | 150 | ±7% | 線性調整率:±1% 負載調整率:±5% | 79.01% | ≤3s |
5.1-6.0 | 0.01-2.00 | 12.00W | 150 | ±7% | 80.19% | ≤3s | ||
6.1-7.0 | 0.01-1.71 | 11.97W | 150 | ±7% | 83.30% | ≤3s | ||
7.1-8.0 | 0.01-1.50 | 12.00W | 150 | ±7% | 83.30% | ≤3s | ||
8.1-9.0 | 0.01-1.33 | 11.97W | 150 | ±5% | 83.30% | ≤3s | ||
9.1-10.0 | 0.01-1.20 | 12.00W | 150 | ±5% | 83.30% | ≤3s | ||
10.1-11.0 | 0.01-1.09 | 11.99W | 150 | ±5% | 83.30% | ≤3s | ||
11.1-12.0 | 0.01-1.00 | 12.00W | 150 | ±5% | 83.30% | ≤3s | ||
12.1-13.0 | 0.01-0.94 | 12.22W | 200 | ±5% | 83.30% | ≤3s | ||
13.1-14.0 | 0.01-0.86 | 12.04W | 200 | ±5% | 83.30% | ≤3s | ||
14.1-15.0 | 0.01-0.80 | 12.00W | 200 | ±5% | 83.30% | ≤3s | ||
15.1-16.0 | 0.01-0.75 | 12.00W | 200 | ±5% | 83.30% | ≤3s | ||
16.1-17.0 | 0.01-0.71 | 12.07W | 200 | ±5% | 83.30% | ≤3s | ||
17.1-18.0 | 0.01-0.67 | 12.06W | 200 | ±5% | 83.30% | ≤3s | ||
18.1-19.0 | 0.01-0.63 | 11.97W | 200 | ±5% | 83.30% | ≤3s | ||
19.1-20.0 | 0.01-0.60 | 12.00W | 200 | ±5% | 83.30% | ≤3s | ||
20.1-21.0 | 0.01-0.57 | 11.97W | 200 | ±5% | 83.30% | ≤3s | ||
21.1-22.0 | 0.01-0.55 | 12.10W | 200 | ±5% | 83.30% | ≤3s | ||
22.1-23.0 | 0.01-0.52 | 11.96W | 200 | ±5% | 83.30% | ≤3s | ||
23.1-24.0 | 0.01-0.50 | 12.00W | 200 | ±5% | 83.30% | ≤3s |
